Plastic Rubber Double Shaft Tire Shredder Machinery 5000 kg Weight Support Customization
Product Details:
| Place of Origin: | China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,580.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear |
| Tire Machine Type: | Tire Recycling Machine | Year: | Customized Production |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Weight (KG): | 5000 Kg | Power (kW): | 50 |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Other | Showroom Location: | None |
| Product Name: | Double Shaft Waste Tire Shredder Machine | Application: | Waste Recycling Requirements Of Various Industries |
| Input Size: | 200-2200mm | Advantage: | Easy Operation High Efficiency |
| Suitable Material: | Metal And Plastic | Machine Type: | Support Customization |
| Output: | Compact | Final Product: | 1-10 Cm |
| MOTOR: | Famous Brand | ||
Product Description
Products Description

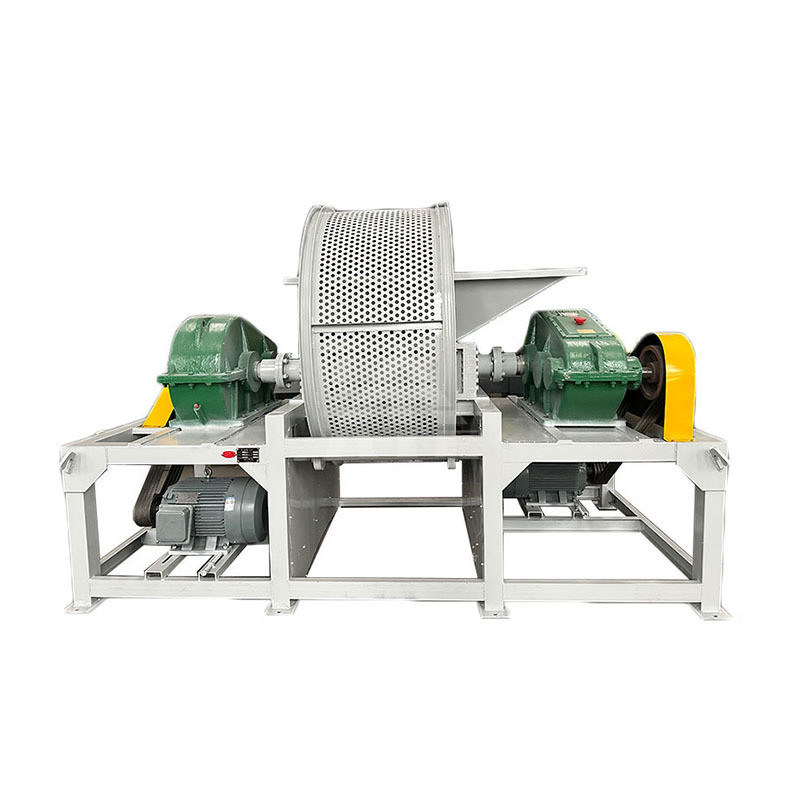

Double Shaft Tire Shredder Machine
The tire recycling line can effectively realize the automatic separation of materials such as rubber, steel wire, nylon fiber, etc. The whole line adopts a PLC control system, which is easy to operate and maintain, with low energy consumption and long service life.
Product Features
1、Waste tires, rubber soles, waste pipes, rubber conveyor belts and other waste rubber products, of which waste tires are the most. We can customize metal crushing and recycling production line for you.
Tyre Recycling Machine 2、Waste tire recycling machine, is a rare in the whole of the EU CE certification with high standard of quality certification.
Product Parameters
model | size(mm) | Shredder room(mm) | Blads(mm) | motor(k) | weight(kg) | |||||
XD-600 | 2800×1300×1850 | 600×480 | 200 | 11×2 | 2200 | |||||
XD-800 | 3000×1300×1850 | 800×480 | 200 | 15×2 | 2500 | |||||
XD-1000 | 3300×1900×2200 | 1000×690 | 300 | 22×2 | 5200 | |||||
XD-1200 | 3600×2000×2200 | 1200×690 | 300 | 30×2 | 6400 | |||||
XD-1500 | 4180×2100×2400 | 1500×850 | 550 | 55×2 | 9000 | |||||
XD-1800 | 5800×2400×3300 | 1800×1206 | 550 | 75×2 | 13600 | |||||
XD-2000 | 6400×2700×3500 | 2000×1490 | 600 | 90×2 | 20100 | |||||
XD-2500 | 7500×3200×3800 | 2500×1800 | 600 | 110×2 | 25000 | |||||
Notes: 1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge. 3. More information please contact us, we can custom the product on your request. | ||||||||||
Product Application
It can be used to tear up solid materials such as plastic, rubber, fiber, tire, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity.
Product Details
Working principle
Biaxial shredders use two-axis independent drive, so that the production of materials to produce the corresponding pressure, to achieve automatic feeding function, a unique knife shaft structure and four-corner rotary tool, low speed high torque in the production process.There will be no winding shaft, or stuck phenomenon of the device, thereby increasing the production efficiency, the device is suitable for all kinds of toughness, high viscosity material crushing.
Knife Details Of The Metal Shredder
Our Advantage
1. Super high crushing efficiency
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and improve the grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and improve the grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
