Double Shaft Shredder Compact and Environmentally Friendly for Plastic Waste Disposal
Product Details:
| Place of Origin: | China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,600.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Plastic Type: | PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS, Metal |
|---|---|---|---|
| Machine Type: | Plastic Shredder, Support Customization | Max.Production Capacity (kg/h): | 17000 |
| Production Capacity (kg/h): | 1 - 5000 Kg/h | Use: | Waste Plastic Crusher |
| Shaft Design: | Double | Voltage: | Can Be Customized |
| Power (kW): | 50 | Weight (T): | 0.5 |
| Warranty: | 1 Year | Applicable Industries: | Hotels, Food & Beverage Factory, Home Use, Construction Works , Other |
| Key Selling Points: | Multifunctional | Showroom Location: | None |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox |
| Product Name: | Waste Recycling Shredder Machine | Application: | Waste Recycling Requirements Of Various Industries |
| Input Size: | 200-2200mm | Advantage: | Easy Operation High Efficiency |
| Suitable Material: | Metal And Plastic | Output: | Compact |
| Final Product: | 1-10 Cm | MOTOR: | Famouse Brand |
Product Description
Products Description
Double Shaft Shredder Machine
The Double Shaft Shredder can meet the waste recycling requirements of various industries, and is suitable for shredding thick and difficult materials, such as: electronic waste, plastic,tire, metal, wood, waste rubber, packaging barrels, pallets, etc.
Product Features
1、The double shaft shredder have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. 2、Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction. 3、It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling,municipal solid waste recycling, plastic recycling,tire recycling, paper making industry and etc.
Product Parameters
model | size(mm) | Shredder room(mm) | Blads(mm) | motor(k) | weight(kg) | |||||
XD-600 | 2800×1300×1850 | 600×480 | 200 | 11×2 | 2200 | |||||
XD-800 | 3000×1300×1850 | 800×480 | 200 | 15×2 | 2500 | |||||
XD-1000 | 3300×1900×2200 | 1000×690 | 300 | 22×2 | 5200 | |||||
XD-1200 | 3600×2000×2200 | 1200×690 | 300 | 30×2 | 6400 | |||||
XD-1500 | 4180×2100×2400 | 1500×850 | 550 | 55×2 | 9000 | |||||
XD-1800 | 5800×2400×3300 | 1800×1206 | 550 | 75×2 | 13600 | |||||
XD-2000 | 6400×2700×3500 | 2000×1490 | 600 | 90×2 | 20100 | |||||
XD-2500 | 7500×3200×3800 | 2500×1800 | 600 | 110×2 | 25000 | |||||
Notes: 1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge. 3. More information please contact us, we can custom the product on your request. | ||||||||||
Product Application
Processable materials
1.Metal: aluminum can bundle, steel drum, car shell, color steel tile, bicycle, copper aluminum radiator, oil filter, scrap wires,cables, aluminum composite plastic panel, steel wire rope, gas tank, iron scrap, zip-top can, engine case, paint bucket, etc. 2.Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc. 3.Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc. 4.Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc. 5.Paper: scrap paper and cartons, including scrap books, carton board, carton box, packaging box, waste newspaper, office paper,printing paper, paperboard, etc. 6.Waste household appliances: TV, washing machine, refrigerator shell etc. 7. Pipes: large pipes, pipe fittings, PE pipes etc. 8.Scrap tires: car tires, truck tires etc. 9.All kinds of Kitchen waste, domestic waste, rdf derivatives, medical waste,garden waste etc.Product Details

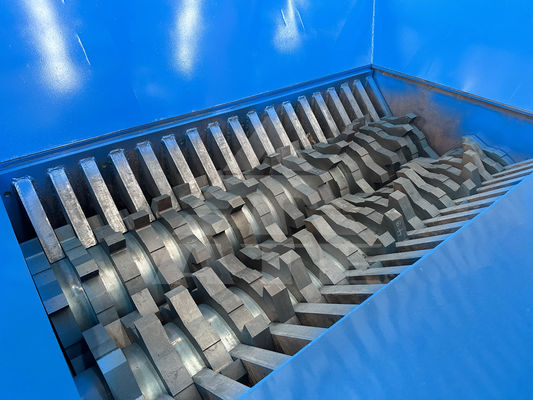

Knife Details Of The Metal Shredder
Our Advantage
1. It has the characteristics of low speed, high torque and low noise. It is controlled by PLC. It has the functions of starting,stopping, reversing and overloading automatic reversing.

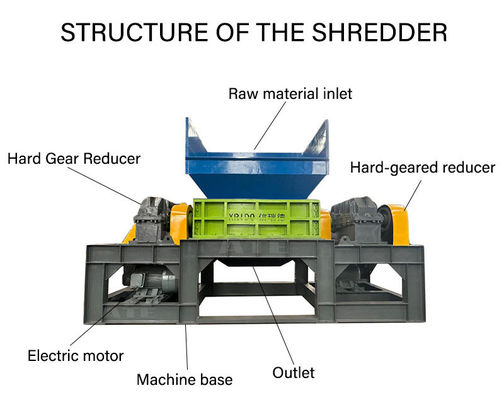

2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
Why Choose Us
Successful Project
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
