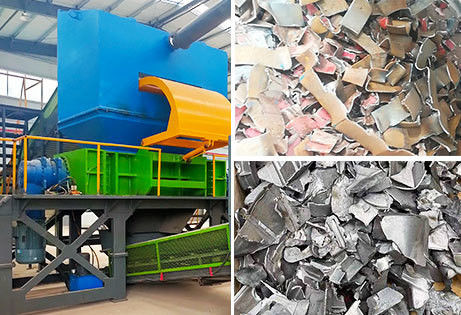

Electrical Copper Cable Iron Steel Light Metal Cans Chip Shredder Machine 2.8T Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,500.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Plastic Type: | PVC, PET, PP/PE, PE, PP, PC, PMMA, PA, PS |
|---|---|---|---|
| Machine Type: | Plastic Shredder | Max.Production Capacity (kg/h): | 17000 |
| Production Capacity (kg/h): | 200 - 17000 Kg/h | Use: | Waste Plastic Crusher |
| Shaft Design: | Double | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | 4180x2100x2400 Mm | Power (kW): | 30 |
| Weight (T): | 2.8 | Warranty: | 1 Year |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Energy & Mining | Key Selling Points: | Multifunctional |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine | Product Name: | Two Shaft Waste Recycling Shredder Machine |
| Application: | Waste Recycling Requirements Of Various Industries | Input Size: | 200-2200mm |
| Function: | Waste Plastic Crusher | Advantage: | Easy Operation High Efficiency |
| Key Words: | Two Shaft Plastic Shredder | Suitable Material: | Copper And Aluminum Plate, And Other Scrap Metal Materials |
| Final Product: | Standard-reaching Rate Is Higher Than 95%. | Usage: | Electronic Waste, Plastic, Metal, Wood, Waste Rubber, |
Product Description
Products Description
Double Shaft Shredder Machine
The Double Shaft Shredder can meet the waste recycling requirements of various industries, and is suitable for shredding thick and difficult materials, such as: electronic waste, plastic,tire, metal, wood, waste rubber, packaging barrels, pallets, etc.
Product Features
1、The double shaft shredder have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. 2、Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction. 3、It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling,municipal solid waste recycling, plastic recycling,tire recycling, paper making industry and etc.
Product Details
Working principle
Biaxial shredders use two-axis independent drive, so that the production of materials to produce the corresponding pressure, to achieve automatic feeding function, a unique knife shaft structure and four-corner rotary tool, low speed high torque in the production process.There will be no winding shaft, or stuck phenomenon of the device, thereby increasing the production efficiency, the device is suitable for all kinds of toughness, high viscosity material crushing.
Knife Details Of The Metal Shredder
Product Parameters
model | size(mm) | Shredder room(mm) | Blads(mm) | motor(k) | weight(kg) | |||||
XD-600 | 2800×1300×1850 | 600×480 | 200 | 11×2 | 2200 | |||||
XD-800 | 3000×1300×1850 | 800×480 | 200 | 15×2 | 2500 | |||||
XD-1000 | 3300×1900×2200 | 1000×690 | 300 | 22×2 | 5200 | |||||
XD-1200 | 3600×2000×2200 | 1200×690 | 300 | 30×2 | 6400 | |||||
XD-1500 | 4180×2100×2400 | 1500×850 | 550 | 55×2 | 9000 | |||||
XD-1800 | 5800×2400×3300 | 1800×1206 | 550 | 75×2 | 13600 | |||||
XD-2000 | 6400×2700×3500 | 2000×1490 | 600 | 90×2 | 20100 | |||||
XD-2500 | 7500×3200×3800 | 2500×1800 | 600 | 110×2 | 25000 | |||||
Notes: 1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge. 3. More information please contact us, we can custom the product on your request. | ||||||||||
Product Application
It can be used to tear up solid materials such as plastic, rubber, fiber, tire, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.
Our Advantages
Our Advantage
1. It has the characteristics of low speed, high torque and low noise. It is controlled by PLC. It has the functions of starting,stopping, reversing and overloading automatic reversing.
2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
Successful Project
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
