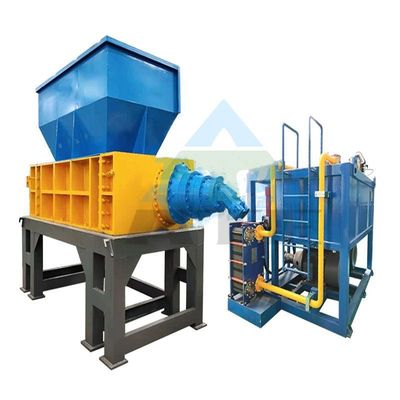

Industrial Metal Shredder for Scrap Copper and Aluminum Plate Recycling Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,990.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Plastic Type: | PVC, PET, PP/PE, PE, PP, PC, PMMA, PA, PS |
|---|---|---|---|
| Machine Type: | Plastic Shredder | Max.Production Capacity (kg/h): | 20000 |
| Production Capacity (kg/h): | 400 - 20000 Kg/h | Use: | Industrial Waste Shredder |
| Shaft Design: | Single | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | 2800x1300x1850mm | Power (kW): | 30 |
| Weight (T): | 2.5 | Warranty: | 1 Year |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Energy & Mining | Key Selling Points: | High Safety Level |
| Showroom Location: | None | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine | Product Name: | Industrial Waste Radiator/medical Waste Shredder |
| Application: | Industrial Waste Disposal Industry | Input Size: | 200-2200mm |
| Function: | Waste Radiator Shredder | Advantage: | Easy Operation High Efficiency |
| Key Words: | Shredding Car Water Tank Radiator, Air Conditioner Radiator | Suitable Material: | Copper And Aluminum Plate, And Other Scrap Metal Materials |
| Final Product: | Standard-reaching Rate Is Higher Than 95%. | Usage: | Waste Raw Material Shredding |
Product Description
Products Description
Industrial Waste Shredder/Waste Radiator Shredder
The radiator shredder is widely used in shredding car water tank radiator, air conditioner radiator, copper and aluminum plate, and other scrap metal materials. After the radiator is shredded, different kinds of metals can be sorted.
Product Parameters
model | size(mm) | Shredder room(mm) | Blads(mm) | motor(k) | weight(k) | |||||
XD-600 | 2800×1300×1850 | 600×480 | 200 | 11×2 | 2200 | |||||
XD-800 | 3000×1300×1850 | 800×480 | 200 | 15×2 | 2500 | |||||
XD-1000 | 3300×1900×2200 | 1000×690 | 300 | 22×2 | 5200 | |||||
XD-1200 | 3600×2000×2200 | 1200×690 | 300 | 30×2 | 6400 | |||||
XD-1500 | 4180×2100×2400 | 1500×850 | 550 | 55×2 | 9000 | |||||
XD-1800 | 5800×2400×3300 | 1800×1206 | 550 | 75×2 | 13600 | |||||
XD-2000 | 6400×2700×3500 | 2000×1490 | 600 | 90×2 | 20100 | |||||
XD-2500 | 7500×3200×3800 | 2500×1800 | 600 | 110×2 | 25000 | |||||
More information please contact us, we can custom the product on your request | ||||||||||
Product Application
Applicable Materials
Final Product
Other Metal Crushing Recycling Plant
We can customize metal crushing and recycling production line for you.
Scrap Steel Crushing Recycling Line
Waste Aluminum Crushing Production Line
Water Radiator Crushing Sorting Line
Product Details
Working principle
1、After the PCB is dismantled, it will be crushed. The crushing methods include impact crushing, extrusion crushing and shear crushing. The more commonly used technology is ultra-low temperature freezing and crushing technology, which can cool down tough materials, make them brittle and crush them, and completely dissociate metals and non-metals.
2、The pulverized material needs to be sorted according to the density, particle size, magnetic permeability, electrical conductivity and other characteristics of each component. Usually, there are dry and wet sorting. Dry separation includes dry screening, magnetic separation, electrostatic, density and eddy current separation, etc. Wet separation includes hydro cyclone classification,flotation, hydraulic shaker, etc. The separated substances can be reused.
Knife Details Of The Metal Shredder
The blade of the metal shredder is made of high-strength alloy steel, which has the characteristics of strong wear resistance and high strength. The differential speed between the shafts has the functions of tearing, squeezing and biting. It is professionally designed for crushing metal. The design has the advantages of uniform discharge, large output and low noise. The electrical part adopts PLC control, with automatic detection of overload protection and other functions.
Our Advantage
1. Super high crushing efficiencyHydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improve the grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
