Wood Pallet Cardboard Crusher Blade Carton Box Double Shredding Machine 2.8T Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,500.00/sets 2-4 sets |
|
Detail Information |
|||
| Condition: | New | Plastic Type: | PVC, PET, PP/PE, PE, PP, PC, PMMA, PA, PS |
|---|---|---|---|
| Machine Type: | Plastic Shredder | Max.Production Capacity (kg/h): | 17000 |
| Production Capacity (kg/h): | 200 - 17000 Kg/h | Use: | Waste Plastic Crusher |
| Shaft Design: | Double | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | 4180x2100x2400 Mm | Power (kW): | 30 |
| Weight (T): | 2.8 | Warranty: | 1 Year |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Energy & Mining | Key Selling Points: | Multifunctional |
| Showroom Location: | Canada, Turkey, Viet Nam, Indonesia, India, Algeria, Ukraine, Malaysia | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine | Product Name: | Two Shaft Waste Recycling Shredder Machine |
| Application: | Waste Recycling Requirements Of Various Industries | Input Size: | 200-2200mm |
| Function: | Waste Plastic Crusher | Advantage: | Easy Operation High Efficiency |
| Key Words: | Two Shaft Plastic Shredder | Suitable Material: | Copper And Aluminum Plate, And Other Scrap Metal Materials |
| Final Product: | Standard-reaching Rate Is Higher Than 95%. | Usage: | Electronic Waste, Plastic, Metal, Wood, Waste Rubber, |
| Port: | Qingdao, Tianjin, Lianyungng, Shanghai, Manzhouli City, Ruili City, Pingxiang City, Erenhot City, Khorgos | ||
Product Description
Product Overview

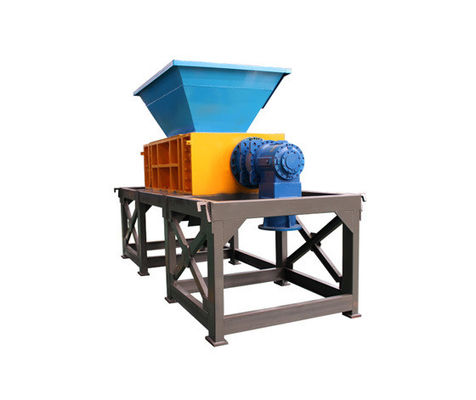

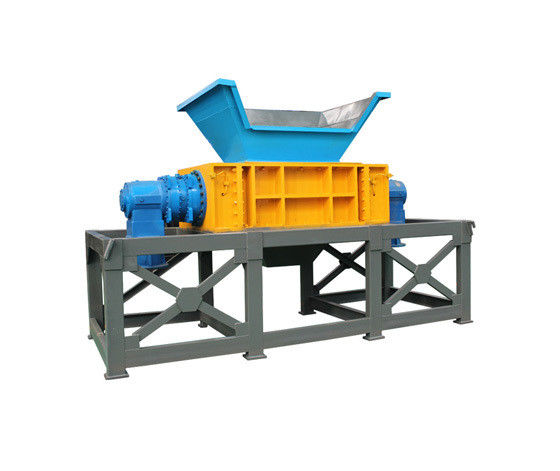

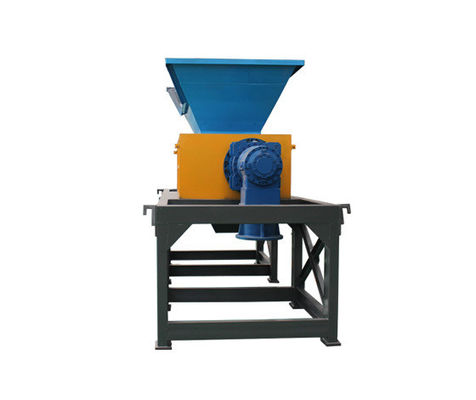

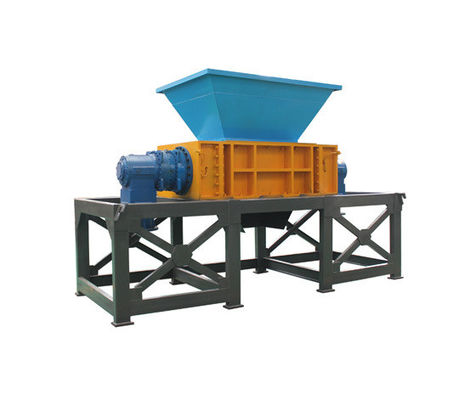

Dual shaft shredder machine/Wood pallet cardboard crusher shredder
The double shaft shredder have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction.
It is widely used in industry waste recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, papermaking industry and etc.
working principle
The Double Shaft Shredder can meet the waste recycling requirements of various industries, and is suitable for shredding thick and difficult materials, such as: electronic waste, plastic, metal, wood, waste rubber, packaging barrels, pallets, etc.
Knife Details Of The Metal Shredder
Everything can be shredded
Applicable industrial Waste Shredder Material:
Our advantage：
1. It has the characteristics of low speed, high torque and low noise. It is controlled by PLC. It has the functions of starting,stopping, reversing and overloading automatic reversing.
2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
What types of materials are processed?
It can be used to tear up solid materials such as plastic, rubber, fiber, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard
materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.
It can be used to tear up solid materials such as plastic, rubber, fiber, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard
materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.
PRODUCT SPECIFICATIONS
model | size(mm) | Shredder room(mm) | Blads(mm) | motor(k) | weight(k) | |||||
XD-600 | 2800×1300×1850 | 600×480 | 200 | 11×2 | 2200 | |||||
XD-800 | 3000×1300×1850 | 800×480 | 200 | 15×2 | 2500 | |||||
XD-1000 | 3300×1900×2200 | 1000×690 | 300 | 22×2 | 5200 | |||||
XD-1200 | 3600×2000×2200 | 1200×690 | 300 | 30×2 | 6400 | |||||
XD-1500 | 4180×2100×2400 | 1500×850 | 550 | 55×2 | 9000 | |||||
XD-1800 | 5800×2400×3300 | 1800×1206 | 550 | 75×2 | 13600 | |||||
XD-2000 | 6400×2700×3500 | 2000×1490 | 600 | 90×2 | 20100 | |||||
XD-2500 | 7500×3200×3800 | 2500×1800 | 600 | 110×2 | 25000 | |||||
more information please contact us, we can custom the product on your request | ||||||||||
