95% Standard-Reaching Rate Four Shaft Shredder for Metal Agriculture Waste and Clothes
Product Details:
Place of Origin: | Henan |
Brand Name: | Aite |
Certification: | CE ISO TUV |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | $5,500.00/sets 1-4 sets |
Detail Information |
|||
Condition: | New | Video Outgoing-inspection: | Provided |
---|---|---|---|
Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
Warranty: | 1 Year | Material / Metal Processed: | Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum |
Power (kW): | 164 | Weight (KG): | 29400 |
Key Selling Points: | Multifunctional | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
Showroom Location: | None | Product Name: | Four Shaft Waste Recycling Shredder Machine |
Application: | Waste Recycling Requirements Of Various Industries | Input Size: | Customized |
Function: | Scrap Plastic Metal Recycling Machine | Advantage: | Easy Operation High Efficiency |
Key Words: | Four Shaft Plastic Shredder | Suitable Material: | Plastic,copper And Aluminum Plate, And Other Scrap Metal Materials |
Final Product: | Standard-reaching Rate Is Higher Than 95%. | Usage: | Electronic Waste, Plastic, Metal, Wood, Waste Rubber, |
Product Description
Products Description

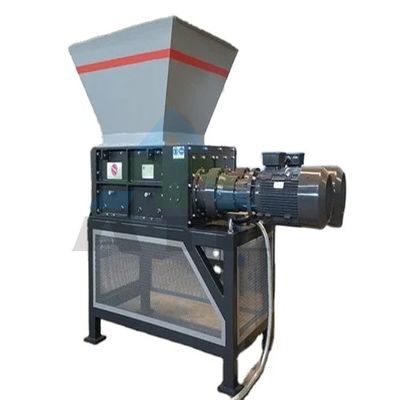

Four shaft shredder machine
The four-shaft shredder has been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction.
Product Features
1、The double shaft shredder have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. 2、Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction. 3、It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling,municipal solid waste recycling, plastic recycling,tire recycling, paper making industry and etc.
Product Details
Working principle
The four-shaft shredders use a two-axis independent drive so that the production of materials to produce the corresponding pressure, to achieve automatic feeding function, a unique knife shaft structure and a four-corner rotary tool, low-speed high torque in the production process, there will be no winding shaft, or stuck phenomenon of the device, thereby increasing the production efficiency, the device is suitable for all kinds of toughness, high viscosity material crushing.
Heavy-load self-aligning bearing
1. We install heavy-load self-aligning bearings on two main shafts.
2. When a blade is impacted by a heavy load,the heavy-load self-aligning bearing produces an immense mechanical action that relieves the impact force.
3. We choose the world's leading bearings of brands as a standard configuration for all Aite shredders.
2. When a blade is impacted by a heavy load,the heavy-load self-aligning bearing produces an immense mechanical action that relieves the impact force.
3. We choose the world's leading bearings of brands as a standard configuration for all Aite shredders.
Detachable cutter
1. Detachable blade design greatly reduces blade replacement time
2. A complete crushing blade comprises of three parts.
3. It is quite easy to replace a worn blade: simply loosen and tighten the bolt.
2. A complete crushing blade comprises of three parts.
3. It is quite easy to replace a worn blade: simply loosen and tighten the bolt.
Knife Details Of The Metal Shredder
Product Parameters
Four shaft shredder(Medium type)
Model | XD-M900S | XD-M900L | XD-M1000S | XD-Eh1000 | XD-EM1000XL |
Blade Diameter(mm) | Φ290 | Φ290 | Φ320 | Φ320 | Φ320 |
Shaft Speed(rmp) | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 |
Blade Thickness(mm) | 25 | 25 | 40 | 40 | 40 |
Blade Quantity(pcs) | 32*2 | 40*2 | 25*2 | 32*2 | 32*2 |
Shredding Chamber Size(mm) | 900*800 | 900*1000 | 1000*1000 | 1000*1200 | 1000*1400 |
Motor Power(kw) | 18.5*2 | 18.5*2 | 22*2 | 22*2 | 22*2 |
Machine Size(mm) | 2400*1550*2500 | 2600*1550*2500 | 2900*1700*2800 | 3100*1700*2800 | 3300*1700*2800 |
Machine Weight(kg) | 4700 | 5000 | 6600 | 7100 | 7600 |
Four shaft shredder(Heavy type)
Model | XD-H900S | XD-H900L | XD-H1500XL | XD-E1600LS | XD-E1600L1600L | |||||
Blade Diameter(mm) | Φ430 | Φ430 | Φ510 | Φ510 | Φ510 | |||||
Shaft Speed(rmp) | 10-25 | 10-25 | 10-25 | 10-25 | 10-25 | |||||
Blade Thickness(mm) | 50 | 50 | 50 | 50 | 50 | |||||
Shredding Chamber Size(mm) | 1300*1200 | 1300*1400 | 1300*1600 | 1300*1600 | 1300*1800 | |||||
Motor Power(kw) | 30*2+15*2 | 30*2+15*2 | 30*2+15*2 | 45*2+30*2 | 45*2+30*2 | |||||
Machine Size(mm) | 4100*2000*3100 | 4300*2000*3100 | 4500*2000*3100 | 4800*2300*3600 | 5000*2300*3600 | |||||
Machine Weight(kg) | 15600 | 16000 | 17000 | 22500 | 23700 | |||||
We can customize the product on your request |
Notes:
1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge.Product Application
It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, paper making industry and etc.
Plastics | Mouldings, Purgings/Lump, Profiles, Films etc. | ||||||
Timber/Wood | Pallets, Joiners Waste, Green Waste etc. | ||||||
Paper & Cardboard | Confidential Documents, Production Waste, Packaging Materials etc. | ||||||
Copper Cable | Household, Telecoms and Industrial Cables including S.W.A | ||||||
Aluminum | Used Beverage Cans (UBC's), Swarf, Cables etc. | ||||||
Textiles | Carpet (Rolls & Tiles), Garments etc. | ||||||
Security Destruction | Counterfeit Items, Faulty Goods, Out of Date Stock etc. | ||||||
Foam | Production Waste etc. |
It can be used to tear up solid materials such as plastic, rubber, fiber, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.
Our Advantages
* It has the characteristics of low speed, high torque and low noise. It is controlled by PLC. It has the functions of starting, stopping, reversing and overloading automatic reversing.
* The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
* Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
* After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
* Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system)..
* Tools are arranged according to helix to achieve high efficiency cutting.
* Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
* According to different materials and product shapes to be torn up, different types of cutters can be selected.
* The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
* Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
* After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
* Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system)..
* Tools are arranged according to helix to achieve high efficiency cutting.
* Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
* According to different materials and product shapes to be torn up, different types of cutters can be selected.
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
