Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant

Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant

Product Details:

Place of Origin: Henan
Brand Name: Aite
Certification: CE ISO TUV

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $7,500.00/sets 2-4 sets
Get Best Price Contact Now

Detail Information

Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Warranty: 1 Year Material / Metal Processed: Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum
Power (kW): 164 Weight (KG): 29400
Key Selling Points: Multifunctional Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location: Kenya, UAE, Algeria, South Africa, Ukraine, Tajikistan, Turkey, United States, Italy, France, Germany, Indonesia, India Product Name: Four Shaft Waste Recycling Shredder Machine
Application: Waste Recycling Requirements Of Various Industries Input Size: Customized
Function: Scrap Plastic Metal Recycling Machine Advantage: Easy Operation High Efficiency
Key Words: Four Shaft Plastic Shredder Suitable Material: Plastic,copper And Aluminum Plate, And Other Scrap Metal Materials
Final Product: Standard-reaching Rate Is Higher Than 95%. Usage: Electronic Waste, Plastic, Metal, Wood, Waste Rubber,

Product Description

Product Overview

Four shaft shredder machine/Wood pallet cardboard crusher shredder

The four-shaft shredder has been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction.
It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, papermaking industry and etc.

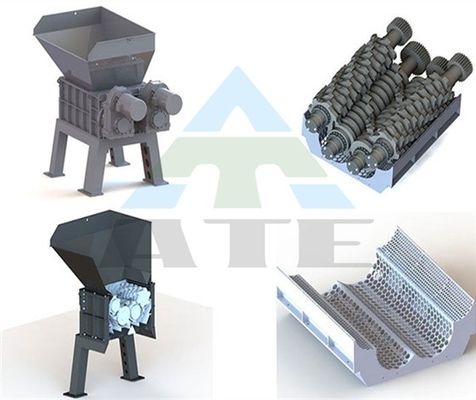

Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 0

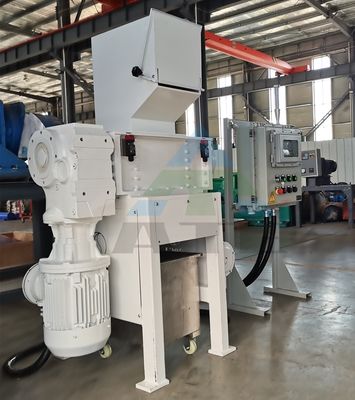

Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 1

working principle

The four-shaft shredders use a two-axis independent drive so that the production of materials to produce the corresponding pressure, to achieve automatic feeding function, a unique knife shaft structure and a four-corner rotary tool, low-speed high torque in the production process, there will be no winding shaft, or stuck phenomenon of the device, thereby increasing the production efficiency, the device is suitable for all kinds of toughness, high viscosity material crushing.

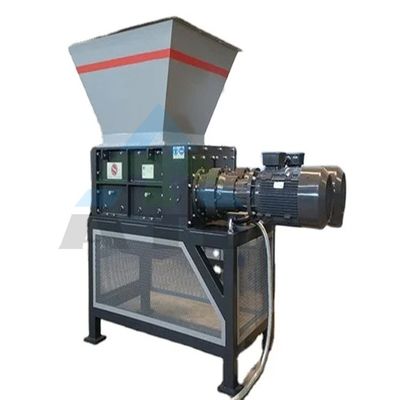

Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 2

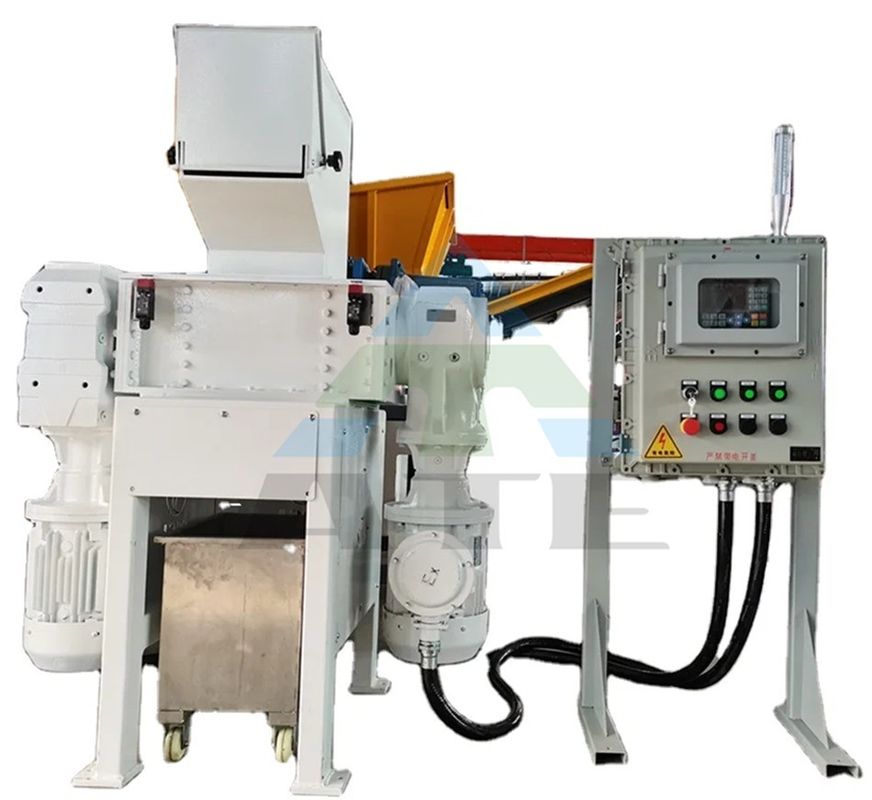

Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 3

Knife Details Of The Metal Shredder

Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 4
Everything can be shredded
Applicable industrial Waste Shredder Material:
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 5
Plastics
Mouldings, Purgings/Lump, Profiles, Films etc.
Timber/Wood
Pallets, Joiners Waste, Green Waste etc.
Paper & Cardboard
Confidential Documents, Production Waste, Packaging Materials etc.
Copper Cable
Household, Telecoms and Industrial Cables including S.W.A
Aluminum
Used Beverage Cans (UBC's), Swarf, Cables etc.
Textiles
Carpet (Rolls & Tiles), Garments etc.
Security Destruction
Counterfeit Items, Faulty Goods, Out of Date Stock etc.
Foam
Production Waste etc.
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 6
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 7
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 8
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 9
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 10
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 11
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 12
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 13
Our advantage:
* It has the characteristics of low speed, high torque and low noise. It is controlled by PLC. It has the functions of starting, stopping, reversing and overloading automatic reversing.
* The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
* Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
* After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
* Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system)..
* Tools are arranged according to helix to achieve high efficiency cutting.
* Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
* According to different materials and product shapes to be torn up, different types of cutters can be selected.
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 14

Heavy-load self-aligning bearing

1. We install heavy-load self-aligning bearings on two main shafts.

2. When a blade is impacted by a heavy load,the heavy-load self-aligning bearing produces an immense mechanical action that relieves the impact force.

3. We choose the world's leading bearings of brands as a standard configuration for all Aite shredders.
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 15

Detachable cutter


1. Detachable blade design greatly reduces blade replacement time

2. A complete crushing blade comprises of three parts.

3. It is quite easy to replace a worn blade: simply loosen and tighten the bolt.


What types of materials are processed?
It can be used to tear up solid materials such as plastic, rubber, fiber, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard
materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 16
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 17
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 18
PRODUCT SPECIFICATIONS
Four shaft shredder(Medium type)
Model
XD-M900S
XD-M900L
XD-M1000S
XD-Eh1000
XD-EM1000XL
Blade Diameter(mm)
Φ290
Φ290
Φ320
Φ320
Φ320
Shaft Speed(rmp)
15-25
15-25
15-25
15-25
15-25
Blade Thickness(mm)
25
25
40
40
40
Blade Quantity(pcs)
32*2
40*2
25*2
32*2
32*2
Shredding Chamber Size(mm)
900*800
900*1000
1000*1000
1000*1200
1000*1400
Motor Power(kw)
18.5*2
18.5*2
22*2
22*2
22*2
Machine Size(mm)
2400*1550*2500
2600*1550*2500
2900*1700*2800
3100*1700*2800
3300*1700*2800
Machine Weight(kg)
4700
5000
6600
7100
7600
Four shaft shredder(Heavy type)
Model
XD-H900S
XD-H900L
XD-H1500XL
XD-E1600LS
XD-E1600L1600L
Blade Diameter(mm)
Φ430
Φ430
Φ510
Φ510
Φ510
Shaft Speed(rmp)
10-25
10-25
10-25
10-25
10-25
Blade Thickness(mm)
50
50
50
50
50
Shredding Chamber Size(mm)
1300*1200
1300*1400
1300*1600
1300*1600
1300*1800
Motor Power(kw)
30*2+15*2
30*2+15*2
30*2+15*2
45*2+30*2
45*2+30*2
Machine Size(mm)
4100*2000*3100
4300*2000*3100
4500*2000*3100
4800*2300*3600
5000*2300*3600
Machine Weight(kg)
15600
16000
17000
22500
23700
We can customize the product on your request
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 19
Company Profile
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 20
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 21
Henan Xrido Environmental Protection TechnologyCo.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
we mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc.
Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 22
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 23
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 24
SALES AND SERVICE NETWORK
Four Shaft Plastic Shredder for Waste Reduction and Recycling in Manufacturing Plant 25
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.

Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.

Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.

We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
