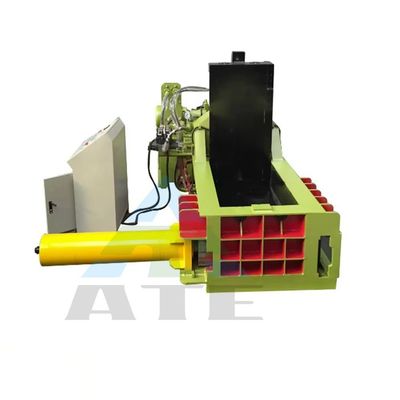

600*600 mm Baler Size Stainless Steel Metal Scrap Baler Press for Your Requirements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Aite |
| Model Number: | Y81F-400A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,590.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gearbox, Motor, Pressure Vessel, Gear |
| Warranty: | 1 Year | Power (kW): | 30 |
| Weight (KG): | 2000 | Material / Metal Processed: | Brass / Copper, ALLOY, Carbon Steel, Stainless Steel |
| Key Selling Points: | Long Service Life | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Restaurant, Food Shop, Construction Works |
| Showroom Location: | India | Product Name: | Metal Briquetting Machine/Scrap Iron Aluminum Baler |
| Baler Density: | >=2000 Kg/m 3 | Single Circling Time: | 120minute |
| Nominal Thrust: | 270 | Baler Size: | 600*600 Mm |
| Packaging Material: | Paper, Plastic, Straw,hay, PET Bottle | Type: | Hydraulic Metal Baler |
| Overall Size: | Steelmaking Plant. Recycling Processing And Metal Smelting Industry. | Compression Chamber Size: | 20500*2000*1200 Mm |
| Bale Discharging Mode: | Turn Over/Side Push | ||
Product Description
Products Description
Metal Baler Machine
The metal baler machine is suitable for the steel making plant. recycling processing industry and metal smelting industry. It can extrude all kinds of metal scraps, steel shavings, scrap steel, scrap aluminum, scrap copper, etc. into a rectangle, cylinder,octagonal shape, and other qualified furnace materials，which is convenient for storage，transportation, and recycling. improve furnace feeding speed, improve labor efficiency, reduce transportation, manpower, and smelting cost.
Product Features
1. All models are hydraulically driven, and can be manually or PLC automatically controlled. 2. No foot screws are required for installation, and a diesel engine can be used as power in places without power. 3. The bag delivery methods include bag turning, side push, front push, manual bag taking, etc. 4. The size of the feeding box and the shape and size of the bag can be designed and customized according to the user's raw material specifications.
Product Details
Working principle
1、Add scrap metal to the silo, operate the handle of the reversing valve, close the upper cover, lock the lock to prevent the upper cover from popping, perform the initial pre-compression. 2、Then the side cylinder for secondary compression.When the side cylinder is in place, the main The pressure cylinder reaches the system pressure for final compression, and the pressure is maintained for 3-5 seconds after the main pressure cylinder reaches the system pressure. 3、Open the upper cover safety lock, the cover cylinder,the side cylinder, and the main cylinder return. 4、The formed blank is turned out by the flap cylinder or pushed out by the side cylinder to enter the next cycle.
Product Parameters
Model | Nominal force(KN) | Chamber size(mm) | Baler size(mm) | Capacity(KG/H) | Single cycle time(s) | Motor power(KW) |
Y81T-125A | 1250 | 1200x700x600 | 300x300 | 1200-1800 | <=100 | 15 |
Y81T-135A | 1350 | 1400x900x700 | 350x350 | 1800-2200 | <=110 | 22 |
Y81T-160 | 1600 | 1400x900x800 | 350x350 | 2000-2800 | <=120 | 22 |
Y81T-160A | 1600 | 1600x1000x800 | 400x400 | 2000-3500 | <=120 | 22 |
Y81T-160B | 1600 | 1600x1200x800 | 400x400 | 2200-4000 | <=130 | 30 |
Y81T-200A | 2000 | 1600x1200x800 | 450x450 | 2500-4500 | <=130 | 30,37 |
Y81T-250A | 2500 | 1800x1200x900 | 500x500 | 4000-6000 | <=140 | 44,60 |
Y81T-250B | 2500 | 2000x1400x900 | 500x500 | 5000-6300 | <=150 | 44,60 |
Y81T-315A | 3150 | 2000x1400x1200 | 500x500 | 5000-6500 | <=150 | 60,74 |
Y81T-315B | 3150 | 2000x1750x1200 | 600x600 | 5000-7000 | <=160 | 60,74 |
Y81T-315C | 3150 | 2400x2000x1200 | 600x600 | 6000-7500 | <=160 | 74 |
Y81T-400B | 4000 | 2400x2000x1200 | 600x600 | 7500-9000 | <=160 | 90 |
Product Application
The metal baler can squeeze various metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, dismantled car shells, waste oil drums and other metal raw materials into qualified furnace materials in various shapes such as cuboids and cylinders.
Our Advantages
Advantage:
1、The machine adopt hydraulic drive ,with manual or PLC automatic control operation as options . 2、The hydraulic system applies an integrated valve block and the product is stable and reliable in technical performance. 3、The discharging types fall into turning over ,push out ,forward out and manual lifting . 4、It is unnecessary to fix foot screw and a diesel engine can be used in case of power supply unavailability . 5、The extrusion force ranges from 63t to 400t ,totaling 10 grades for customers’ selection ,and productivity being from 4t/shift to 40t/shift . 6、The size of the compression chamber and the form and size of the bale can be designed and customized according to the requirement of the customers.
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
