650 KG Capacity Plastic Bottle Bag Cans Waste Baler Machine for Customer Bale Density
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Aite |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,490.00/sets 1-4 sets |
|
Detail Information |
|||
| Warranty: | 1 Year | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear |
| Condition: | New | Application: | Food, Beverage, Commodity, Machinery & Hardware, APPAREL, Textiles, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles |
| Packaging Type: | Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Belt, Pouch, Case | Packaging Material: | Plastic, Paper, Metal, Glass, Wood, Paper, Plastic, PET Bottle |
| Automatic Grade: | Automatic, Automatic | Driven Type: | Hydraulic, Hydraulic |
| Voltage: | 380V | Power: | 18.5kw |
| Weight: | 650 KG | Dimension(L*W*H): | 1600*1900*3300mm |
| Key Selling Points: | Long Service Life | Product Name: | Waster Paper PET Bottle Baling Machine |
| Function: | Compress Packaging | Bale Density: | Customer |
| Overall Size: | 1600*1900*3300mm | Usage: | Compress And Pack Loose Materials |
| Key Words: | Vertical Hydraulic Baler | ||
Product Description
Products Description

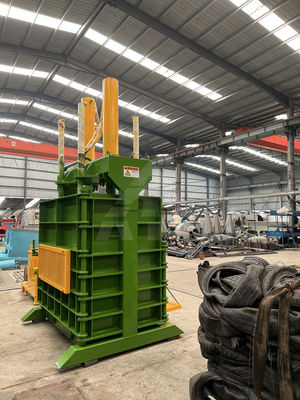

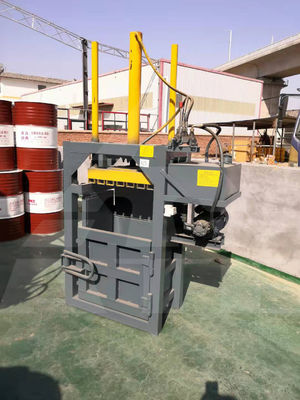

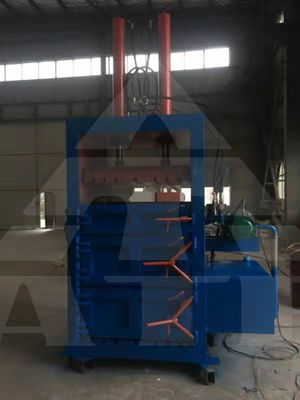

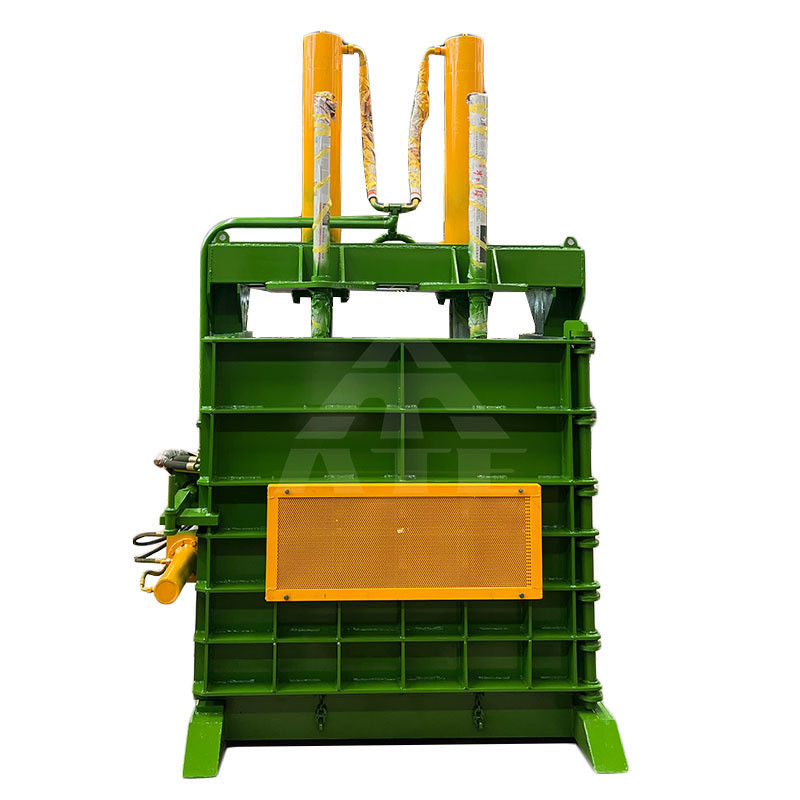

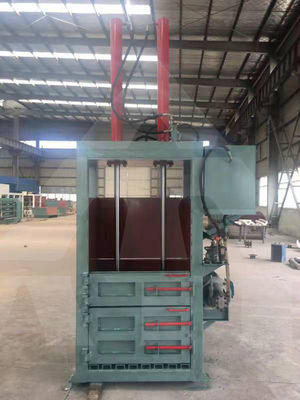

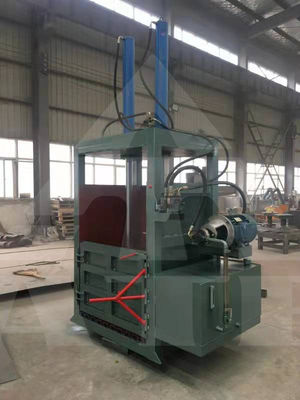

Vertical Baler Machine
1、Vertical hydraulic baling machine is used to compress and pack loose materials. 2、The density of the baling block is high and the overall size is uniform, making it an ideal choice for all kinds of manufacturing factories, material recycling stations and renewable resource recycling companies.
Product Features
1、This type Baler Machine is general purpose, can be used to press and packing a lot of material Science;
2、Machine pressure can be customized, pressure bigger then bale will stronger; 3、Feeding door lifting automatic,lowering the labor density and cycling time; 4、Automatic control model ,more efficiency; 5、Alarming light hint under working state.Instant stopping button with separate installation is obvious to find and safer while operating; 6、Baler Ejection Method: Hanging chain for convenience and rapidness instead of the original cumbersome artificial baler ejection way; 7、Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentric, replacing the common coupling connection and extending pump’s using life; 8、Mainly used to packing waste paper/carton/cardboard ,PET bottle,plastic,sponge etc.Mainly used in restaurant ,supermarket,recycle bin,factory etc.
Product Parameters
Type | Motor power (kw) | Packing weight (kgs) | Packing size (mm) | Machine size (mm) | Weight (kgs) |
10 ton | 7.5 | 30-40 | 800*400*800 | 1450*650*2600 | 650 |
20 ton | 7.5 | 40-80 | 800*400*800 | 1450*650*2700 | 700 |
30 ton | 11 | 80-150 | 1000*600*800 | 1650*850*2700 | 800 |
40 ton | 11 | 150-200 | 1000*600*800 | 1650*850*2750 | 850 |
60 ton | 15 | 250-300 | 1200*800*1000 | 1600*2100*3100 | 1350 |
80 ton | 18.5 | 350-400 | 1200*800*1000 | 1700*2100*3300 | 1550 |
100 ton | 22 | 400-450 | 1200*800*1000 | 1700*2100*3900 | 1650 |
120 ton | 22 | 450-500 | 1100*700 | 1400*2000*4200 | 1750 |
Product Application
Product Details
1.With a rotary closed cover structure, the opening area of the material box is large and it is especially convenient for the feeding of large and empty thin materials.
2.Each moving part adopts hydraulic drive, working steadily, packing pressure is big, bundle block is tight, packing efficiency is high.
3.The operation of the manual reversing valve is simple convenient,safe and reliable.
2.Each moving part adopts hydraulic drive, working steadily, packing pressure is big, bundle block is tight, packing efficiency is high.
3.The operation of the manual reversing valve is simple convenient,safe and reliable.
Why Choose Us
Our Advantage
1、All models are hydraulically driven, and can be controlled manually or automatically by PLC. 2、No foot screw is required for installation, and diesel engine can be used as power in places without power supply. 3、The methods of bag delivery include turning, side pushing, front pushing and manual bag taking. 4、The size of the feeding box and the shape and size of the packing block can be designed and customized according to the specifications of the user's raw materials.Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
