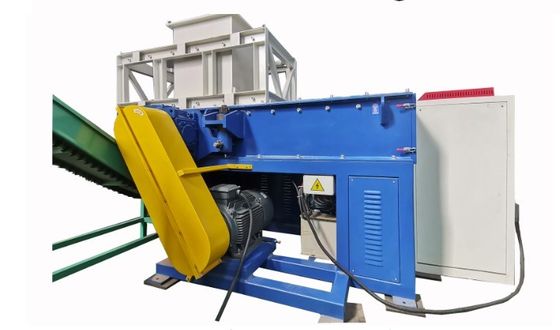

200-8000 kg/h Production Capacity Plastic Shredder for Foam and Waste Fiber Clothing
Product Details:
Place of Origin: | China |
Brand Name: | AITE |
Certification: | CE ISO TUV |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | $3,300.00/sets 1-4 sets |
Detail Information |
|||
Condition: | New | Plastic Type: | PVC, PET, PP/PE, PE, PP, PC, PMMA, PA, PS |
---|---|---|---|
Machine Type: | Plastic Shredder | Max.Production Capacity (kg/h): | 17000 |
Production Capacity (kg/h): | 200 - 8000 Kg/h | Use: | Waste Plastic Crusher |
Shaft Design: | Single | Voltage: | 380V/50HZ |
Dimension(L*W*H): | 3250*700*2100mm | Power (kW): | 30 |
Weight (T): | 2.5 | Warranty: | 1 Year |
Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Home Use, Energy & Mining | Key Selling Points: | High Safety Level |
Showroom Location: | None | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine | Product Name: | Single Shaft Shredder |
Application: | Recycle Waste Plastic | Type: | Plastic Single Shaft Shredder Shredder Parts |
Function: | Crusher Plastic Bottle | Advantage: | Easy Operation High Efficiency |
Key Words: | Shredder Hard Plastic Straw | Suitable Material: | Rubber Wood Plastic Cloth Fabric Feather Paper |
Final Product: | Small Scraps | Usage: | Waste Raw Material Shredding |
Product Description
Products Description
Single Shaft Shredder Machine
1、The single shaft shredder can meet the waste recycling requirements of various industries. It is suitable for recycling plastic,paper, wood, fiber, rubber, domestic waste, etc. there are many kinds of recyclable materials. Suitable for recycling all kinds of large solid materials, difficult to handle materials, plastic containers and plastic barrels, plastic pads.
2、The discharge size can be as small as 20 mm according to different requirements. And can provide all kinds of hopper according to customer's demand. 3、The equipment is low speed, low noise and more energy saving
Product Features
1. The blade is made of cold working die steel, which has good strength, high toughness and high cutting performance. The blade has four cutting edges, which can rotate 90 degrees after wear and continue to use. 2. External bearing design, waterproof and dust proof, prolong the service life of bearings. 3. Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsion. 4. Hard gear reducer, high transmission efficiency, strong load-bearing capacity, low noise
Product Parameters
Model | Motor power(kw) | Feed size(mm) | Moving knife size(mm) | Number of moving Knife Teeth | Number of Moving Knife | Cutter shaft Speed(r/min) | Cutter Diameter(mm) | Capacity(kg) |
DZ-400 | 7.5 | 420*300 | 20 | 4 | 16 | 90 | 180 | 100~200 |
DZ-600 | 30 | 600*400 | 30.2 | 4 | 45 | 90 | 370 | 200~600 |
DZ-800 | 45 | 800*450 | 30.2 | 4 | 60 | 90 | 370 | 600~1000 |
DZ-1000 | 75 | 1000*600 | 30.2 | 4 | 75 | 90 | 450 | 1000~1200 |
DZ-1200 | 110 | 1200*700 | 30.2 | 4 | 90 | 90 | 450 | 2000~4000 |
Notes:
1. The number of blade claws, diameter, and thickness can be customized according to the type of material and the size of the discharge. 2. The output of the equipment will be different depending on the type of material and the size of the discharge.Product Application
1、It can be used to tear up solid materials such as plastic, rubber, fiber, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc.
2、You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.
Final Product
Product Details
Knife Details Of The Metal Shredder
The blade of the metal shredder is made of high-strength alloy steel, which has the characteristics of strong wear resistance and high strength. The differential speed between the shafts has the functions of tearing, squeezing and biting.
Rotor and Screen
The blade of single axis shredder is made of DC53 material, with high wear resistance and durability;Tungsten carbide can be used on the surface of the spindle of the cutter roll of the single axis shredder, which has high wear resistance and durability, and can be repeatedly repaired; the cutter can be used on both sides, and the size of the mesh hole can be adjusted according to the discharge requirements of the user
Bearing block
The special split design ensures that the dust in the tearing chamber will not enter into the bearing. The cylindrical roller self-aligning bearing produced in Luoyang is adopted to ensure that the equipment can adjust the center independently to reduce the noise when tearing materials.
Hardened reducer
The gears of the hard gear reducer are made of high-strength low-carbon alloy steel through carburizing and quenching. The hardness of the gear surface is high. The gears are all CNC gear grinding technology, with high precision, good contact, high transmission efficiency, stable operation and low noise
Shock absorbers
1、High efficiency motor star delta start, equipped with hydraulic clutch;
2、Type III reducer - directly connected with knife stick;
3、Reducer damping - protects the power system from damage caused by reduced pressure.
Control Cabinet
The designer has many years of experience in the production and field use of the electric control cabinet. In the design of the electric control cabinet, all possible situations have been taken into account to ensure the advanced and perfect design idea of the system Siemens relay and indicator light imported from Japan are used to ensure stable, safe and reliable operation of the system
Working Principle
1、Materials from the hopper into the chassis, push the tank under the impetus of the hydraulic cylinder to push the material to the rotating knife roll, rotary knife and fixed knife to crush the material, crushed material falls through the screen, and then transported through the auxiliary conveyor To the next process or collection and packaging. 2、Materials through the feed system into the interior of the shredder box, carrying a shredding blade on the box, push the pusher to push the material to the vicinity of the blade, the material after tearing the blade tear, squeeze, shear and other integrated role.shredded into Small pieces of material, discharged from the screen hole.
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
