Sale 3000L/H Automatic Cable Granulator Copper Rice Scrap Copper Wire Recycling Machine
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Aite |
Certification: | CE ISO TUV |
Model Number: | Aite-TMJ |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | $4,599.00/sets 1-4 sets |
Detail Information |
|||
Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Food Shop, Construction Works , Energy & Mining |
---|---|---|---|
Showroom Location: | None | Type: | Refuse Collector, Metal Recycling/scrap Recycling |
Warranty: | 1 Year | Power: | 30 |
Production Capacity: | 3000L/H | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2020 |
Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel, Motor, Bearing, Gear, PLC, Engine |
Weight (KG): | 850 Kg | Product Name: | Dry Copper Wire Recycling Machine |
Application: | Bicycle Circuit Lines, Communication Cables, And Wire Strippers | Capacity: | 300-500kg/h |
Advantage: | Easy Operation High Efficiency | Function: | Scrap Metal Shredding |
Feeding Size: | Customized | Output Sizes: | 3cm |
Processing Material: | Scrap Copper Wire |
Product Description
Products Description

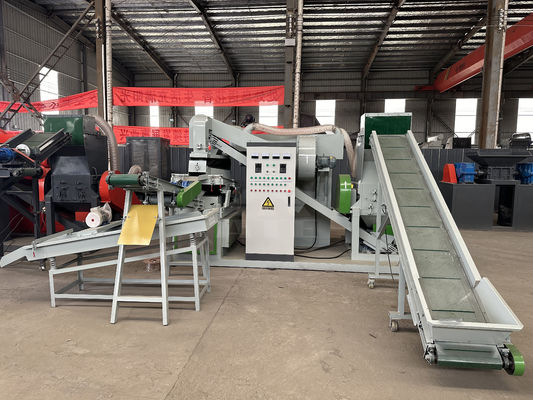

Copper Wire Recycling Machine/Copper Rice Machine
1,Dry copper recycling machine is a professional production line for dry separation of waste wire and cable. For example, circuit lines, communication cables, and wire strippers are not suitable for processing (various civilian wires) waste material's thin filaments, etc.
2,The feature of this machine is that the size limit can be broken and separated at the same time without
classification. The structure is new and unique, the production volume is large, and the power consumption is small. The sorting rate is high, one feeding, and multi-machine cooperation is completed.
classification. The structure is new and unique, the production volume is large, and the power consumption is small. The sorting rate is high, one feeding, and multi-machine cooperation is completed.
3,The whole line is controlled by PLC and is at the leading level in China.
4,The successful development of the machine has solved the problems in the method of incineration and copper extraction and can improve the quality of the recycling barrel, and can recycle the plastic, and solve the environmental pollution.
We can customize metal crushing and recycling production line for you.
Product Features
* After the waste wire and cable is crushed and processed, the fully automatic mechanical separation can completely separate the copper and the plastic, and achieve the comprehensive utilization purpose, which has high economic benefits.
* And no dust and no secondary pollution. In addition, the device is an integrated modular structure, which is easy to install and debug, and transported (can be produced after the customer purchases the power supply), and the performance is stable.
* And no dust and no secondary pollution. In addition, the device is an integrated modular structure, which is easy to install and debug, and transported (can be produced after the customer purchases the power supply), and the performance is stable.
Product Parameters
Model
|
Diameter of materials
|
Capacity(kgs / hr)
|
Power(KW)
|
Dimension(L*W*H)
|
Weight(kg)
|
Aite-400
|
φ0.5-20
|
300-400
|
15
|
1800 * 1300 * 1700
|
2850
|
Aite-600
|
φ0.5-20
|
500-600
|
37
|
2800 * 1800 * 2100
|
4200
|
Aite-800
|
φ0.5-20
|
700-800
|
45
|
2800 * 2000 * 2100
|
6500
|
Aite-1000
|
φ0.5-20
|
800-1000
|
55
|
2800 * 2500 * 2100
|
7800
|
Product Details
Equipment details and power
1. Feeding conveyor 1.1kw 2. Main machine of copper crusher 45KW
3. Crusher discharge 0.37x2kw
3. Crusher discharge 0.37x2kw
4. Air separator (3KW + 2.2kw )x2
5. Dust remover (3KW + 1.5kw )x2
6. Copper end vibrating screen 0.37kw x2
7. Plastic end vibrating screen 0.37kwx2
8. Magnetic separation conveyor 0.55kw
Remarks: the production line covers an area of 15 square meters of equipment; the power of the whole line: 68.27kw, with a total mass of 5000 kg.
5. Dust remover (3KW + 1.5kw )x2
6. Copper end vibrating screen 0.37kw x2
7. Plastic end vibrating screen 0.37kwx2
8. Magnetic separation conveyor 0.55kw
Remarks: the production line covers an area of 15 square meters of equipment; the power of the whole line: 68.27kw, with a total mass of 5000 kg.
Working Principle Of Copper Wire Recycling Machine
Dry copper rice machine (waste wire and cable processing equipment): The shredder is used to crush the material into a length of about 3 cm, and then sheared and crushed by a secondary crusher, and then sorted by high-precision airflow sorting to obtain plastic.
And copper, undivided plastics are sorted by electrostatic separators to ensure copper reuse.
1,After the waste wire and cable crushing process,full-automatic mechanical separation can completely separate copper and plastic,and achieve the purpose of comprehensive utilization, with high economic benefits. And no dust and no secondary pollution.
2,In addition, the device is an overall modular structure,easy to install and debug, and transport (customers can be produced after the power supply is purchased),stable performance.
2,In addition, the device is an overall modular structure,easy to install and debug, and transport (customers can be produced after the power supply is purchased),stable performance.
Product Application
Successful Project
Our Advantage
1. Super high crushing efficiency
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improve the grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improve the grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc.
Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
