Building Material Shops' Scrap Recycling Equipment for Metal Tires Wood and More
Product Details:
| Place of Origin: | China |
| Brand Name: | AITE |
| Certification: | CE ISO TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,200.00/sets 1-4 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear |
| Warranty: | 1 Year | Material / Metal Processed: | Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum |
| Power (kW): | 30 | Weight (KG): | 2800 |
| Key Selling Points: | Multifunctional | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Home Use, Construction Works , Other |
| Showroom Location: | None | Product Name: | Waste Metal Recycling Crusher Machine |
| Application: | Waste Recycling Requirements Of Various Industries | Input Size: | 200-2200mm |
| Function: | Waste Metal Crusher | Advantage: | Easy Operation High Efficiency |
| Key Words: | Crusher Machine | Suitable Material: | Copper And Aluminum Plate, And Other Scrap Metal Materials |
| Final Product: | Standard-reaching Rate Is Higher Than 95%. | Usage: | Electronic Waste, Plastic, Metal, Wood, Waste Rubber, |
Product Description
Products Description

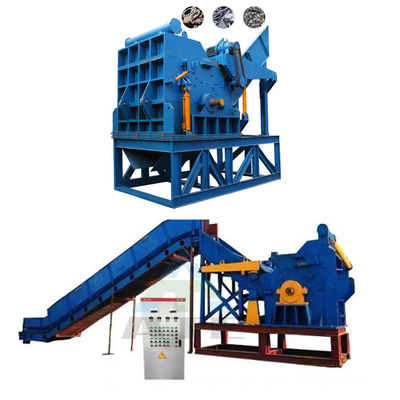

Scrap Metal Crusher Machine
The waste metal crushing and Recycling Line is widely used in shredding scrap aluminum alloy, scrap engine, scrap radiator, broken bridge aluminum, water tank, copper wire,and other scrap metal materials.
We can customize metal crushing and recycling production line for you.
We can customize metal crushing and recycling production line for you.
Product Features
1. This production line has been researched by our company for many years, combined with the actual situation of the country, the processing process has lower metal loss compared with similar production line technology at home and abroad, reduces the number of broken times, and ensures that materials are separated in the maximum state, thereby reducing metal loss. The production of powder improves the efficiency of recycling.
2. The primary crushing adopts a crusher, which adopts a two-shaft double-roller design, which has low noise, high torque, and can crush large-volume radiators.
3. The vertical crusher has strong crushing capacity. It can easily crush the materials in the water tank by one-time crushing. It does not need to remove iron in advance. The hammer head is made of alloy material, and the service life is more than one year.
4. High degree of automation, only 2-3 staff are needed on the whole line.
5. The dust collection system is equipped in the treatment process, which effectively controls the dust overflow.
6. The sorting adopts two-stage specific gravity sorting to improve the sorting accuracy, and the purity of the sorted copper, iron and aluminum is >99%.
2. The primary crushing adopts a crusher, which adopts a two-shaft double-roller design, which has low noise, high torque, and can crush large-volume radiators.
3. The vertical crusher has strong crushing capacity. It can easily crush the materials in the water tank by one-time crushing. It does not need to remove iron in advance. The hammer head is made of alloy material, and the service life is more than one year.
4. High degree of automation, only 2-3 staff are needed on the whole line.
5. The dust collection system is equipped in the treatment process, which effectively controls the dust overflow.
6. The sorting adopts two-stage specific gravity sorting to improve the sorting accuracy, and the purity of the sorted copper, iron and aluminum is >99%.
Product Parameters
Model | Size(mm) | Crusher room(mm) | Blads(mm) | motor(k) | weight(kg) |
Aite-600 | 2800×1300×1850 | 600×480 | 200 | 11×2 | 2200 |
Aite-800 | 3000×1300×1850 | 800×480 | 200 | 15×2 | 2500 |
Aite-1000 | 3300×1900×2200 | 1000×690 | 300 | 22×2 | 5200 |
Aite-1200 | 3600×2000×2200 | 1200×690 | 300 | 30×2 | 6400 |
Aite-1500 | 4180×2100×2400 | 1500×850 | 550 | 55×2 | 9000 |
Aite-1800 | 5800×2400×3300 | 1800×1206 | 550 | 75×2 | 13600 |
Aite--2000 | 6400×2700×3500 | 2000×1490 | 600 | 90×2 | 20100 |
Aite-2500 | 7500×3200×3800 | 2500×1800 | 600 | 110×2 | 25000 |
Product Application
Applicable Materials
Metal crushers are used to crush metal waste such as automobile shells, scrap aluminum, thin scrap steel, waste paint cans, waste home appliances, oil filters, etc. The main purpose is to break up the metal and then roll it into a ball. At the same time, it can separate other impurities attached to the metal. The crushed material obtained by the scrap metal crusher has high density and high purity, and can be re-smelted into new products.
Metal Crushing Recycling Plant
We can customize metal crushing and recycling production line for you.
Scrap Steel Crushing Recycling Line
Waste Aluminum Crushing Production Line
Water Radiator Crushing Sorting Line
Product Details
Knife Details Of The Metal Crusher
The blade of the metal crusher is made of high-strength alloy steel, which has the characteristics of strong wear resistance and high strength. The differential speed between the shafts has the functions of tearing, squeezing and biting. It is professionally designed for crushing metal. The design has the advantages of uniform discharge, large output and low noise. The electrical part adopts PLC control, with automatic detection of overload protection and other functions.
Successful Project
Company Profile
Henan Aite Environmental Protection Technology Co.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
We mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trammel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000, CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
