Metal Crushing Machine for Scrap Metal Recycling in Stainless Steel Material
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Aite |
| Certification: | CE ISO TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,599.00/sets 2-4 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Motor, Pressure Vessel, Gear |
| Warranty: | 1 Year | Material / Metal Processed: | Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum |
| Power (kW): | 55 | Weight (KG): | 2200 |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Construction Works , Metal Crusher Machine |
| Showroom Location: | South Africa, Japan, Australia, United States, Viet Nam, Philippines, Pakistan, India | Product Name: | Metal Crusher Machine |
| Application: | Car Board And Etc | Motor Type: | AC Motor |
| After Warranty Service: | Field Maintenance | Advantage: | Easy Operation High Efficiency |
| Function: | Scrap Metal Shredding | Type: | Hammer Crusher |
| Output Sizes: | ≥5mm | Processing Material: | Scrap Steel Iron,card Body,cans,bicycle Body,etc. |
Product Description
Product Overview
Metal Shredder Machine/Waste Aluminum Crusher
The waste aluminum Crushing and Recycling Line is widely used in shredding scrap aluminum alloy, scrap engine, scrap radiator, broken bridge aluminum, water tank, copper wire,and other scrap metal materials.
We can customize metal crushing and recycling production line for you.
We can customize metal crushing and recycling production line for you.
Features Of Waste Aluminum Crushing And Recycling Production Line
1. This production line has been researched by our company for many years, combined with the actual situation of the country, the processing process has lower metal loss compared with similar production line technology at home and abroad, reduces the number of broken times, and ensures that materials are separated in the maximum state, thereby reducing metal loss. The production of powder improves the efficiency of recycling.
2. The primary crushing adopts a double-shaft shredder, which adopts a two-shaft double-roller design, which has low noise, high torque, and can crush large-volume radiators.
3. The vertical crusher has strong crushing capacity. It can easily crush the materials in the water tank by one-time crushing. It does not need to remove iron in advance. The hammer head is made of alloy material, and the service life is more than one year.
4. High degree of automation, only 2-3 staff are needed on the whole line.
5. The dust collection system is equipped in the treatment process, which effectively controls the dust overflow.
6. The sorting adopts two-stage specific gravity sorting to improve the sorting accuracy, and the purity of the sorted copper, iron and aluminum is >99%.
2. The primary crushing adopts a double-shaft shredder, which adopts a two-shaft double-roller design, which has low noise, high torque, and can crush large-volume radiators.
3. The vertical crusher has strong crushing capacity. It can easily crush the materials in the water tank by one-time crushing. It does not need to remove iron in advance. The hammer head is made of alloy material, and the service life is more than one year.
4. High degree of automation, only 2-3 staff are needed on the whole line.
5. The dust collection system is equipped in the treatment process, which effectively controls the dust overflow.
6. The sorting adopts two-stage specific gravity sorting to improve the sorting accuracy, and the purity of the sorted copper, iron and aluminum is >99%.
Working Principle Of Crusher
The blade of the metal shredder is made of high-strength alloy steel, which has the characteristics of strong wear resistance and high strength. The differential speed between the shafts has the functions of tearing, squeezing and biting. It is professionally designed for crushing metal. The design has the advantages of uniform discharge, large output and low noise. The electrical part adopts PLC control, with automatic detection of overload protection and other functions.
The blade of the metal shredder is made of high-strength alloy steel, which has the characteristics of strong wear resistance and high strength. The differential speed between the shafts has the functions of tearing, squeezing and biting. It is professionally designed for crushing metal. The design has the advantages of uniform discharge, large output and low noise. The electrical part adopts PLC control, with automatic detection of overload protection and other functions.
Applicable Materials
The waste aluminum shredder is mainly used for crushing scrap copper and aluminum, increasing its bulk density for transportation and recycling.
This equipment is widely used in shredding scrap aluminum alloy, scrap radiator, broken bridge aluminum, scrap engine, water tank, copper wire,and other scrap metal materials.
This equipment is widely used in shredding scrap aluminum alloy, scrap radiator, broken bridge aluminum, scrap engine, water tank, copper wire,and other scrap metal materials.

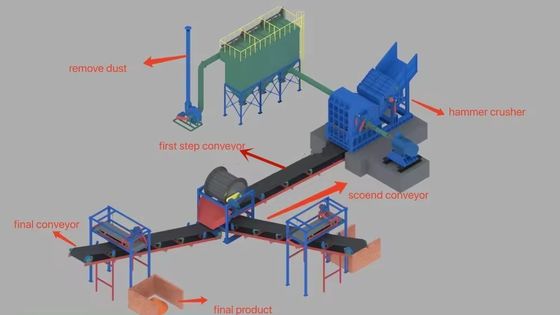

Process Flow Of Waste Aluminum Crushing Recycling Production Line
The material is sent to the double-shaft shredder through the conveyor for primary crushing. The double-shaft shredder squeezes and tears the material into small pieces, and then sends it to the vertical crusher through the conveyor for secondary crushing. ,the hammer crusher fully dissociates the material fragments, squeezes and kneads them into high-density pellets, and the broken small particles are separated from the iron in the material by a magnetic separator, and the remaining copper and aluminum enter the specific gravity Sorting machine, for fine sorting, sorting out the remaining copper, aluminum and other impurities.
The output particles after shredding scrap metal can be customized.
Metal Crushing Recycling Plant
We can customize metal crushing and recycling production line for you.
Scrap Steel Crushing Recycling Line
Waste Aluminum Crushing Production Line
Water Radiator Crushing Sorting Line
Knife Details Of The Metal Shredder
Our Advantage
1. Super high crushing efficiency
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and improvethe grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and improvethe grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.
PRODUCT SPECIFICATIONS
model | size(mm) | Shredder room(mm) | Blads(mm) | motor(k) | weight(k) |
Aite-600 | 2800×1300×1850 | 600×480 | 200 | 11×2 | 2200 |
Aite-800 | 3000×1300×1850 | 800×480 | 200 | 15×2 | 2500 |
Aite-1000 | 3300×1900×2200 | 1000×690 | 300 | 22×2 | 5200 |
Aite-1200 | 3600×2000×2200 | 1200×690 | 300 | 30×2 | 6400 |
Aite-1500 | 4180×2100×2400 | 1500×850 | 550 | 55×2 | 9000 |
Aite-1800 | 5800×2400×3300 | 1800×1206 | 550 | 75×2 | 13600 |
Aite--2000 | 6400×2700×3500 | 2000×1490 | 600 | 90×2 | 20100 |
Aite-2500 | 7500×3200×3800 | 2500×1800 | 600 | 110×2 | 25000 |
Successful Project
Company Profile
Henan Aite Environmental Protection TechnologyCo.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
we mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
SALES AND SERVICE NETWORK
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
