The gantry shear blade is made of H13 material, with sharp edge, no collapse, no rolling edge, and smooth and flat section，
 |

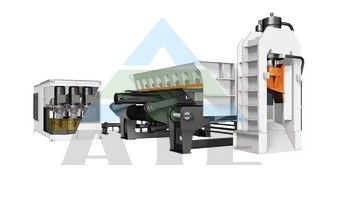

Heavy Metal Gantry Shear Iron Cutting Machine with 76kW Power and 400T Shear Force
Product Details:
| Place of Origin: | Henan |
| Brand Name: | Aite |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,590.00/sets 2-4 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Motor, Gear |
| Warranty: | 1 Year | Max. Cutting Force (Ton): | 400 |
| Machine Type: | Gantry Shears | Power (kW): | 76 |
| Weight (KG): | 32000 | Material / Metal Processed: | Brass / Copper, ALLOY, Carbon Steel, Aluminum, Stainless Steel, Brass / Copper, ALLOY, Carbon Steel, Aluminum, Stainless Steel |
| Key Selling Points: | High Productivity | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Food & Beverage Shops |
| Showroom Location: | Canada, United Kingdom, United States, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, Pakistan, Thailand, Morocco, Kenya, South Korea, South Africa | Product Name: | Hydraulic Gantry Shear Cutting Machine |
| Application: | Recycling Plant, Scrap Steel Plants, Smelting And Casting Factory | Number Of Cuts: | 9-16 Times Per Minute |
| Advantage: | Easy Operation High Efficiency | Shear Force: | 315T/400T/500/630T/800T/1000T/1250T |
| Motor Power: | 22kw/44-300KW | Function: | Hydraulic Recycle Scrap Metal Shear |
| Production Capacity: | 3-30 T/H | Knife Material: | DC53 |
Product Description
Product Overview
About the Product
Gantry shearing machine is a kind of equipment suitable for heavy scrap cutting processing, used for thin steel material, steel bar, steel plate, nickel plate, steel plate, round steel, steel pipe, scrap copper, scrap iron, light metal structural parts, stainless steel, metal pressing block, metal pressing block and other scrap metal cold cutting short, processing into qualified charge.
Working Principle
In working principle, through automatic feeding box,after the material is grabbed to the upper material box, the waste is automatically sent to the cutting edge by the conveyor belt, and the feeding speed can be adjusted by the speed regulating motor.
The two sides of the material box are equipped with side extrusion oil cylinders. If the large-scale waste materials, such as scrapped cars, cannot pass the cutting edge of the gantry shear, they can be squeezed and reduced by the side extrusion oil cylinder, and then sent to the cutting edge through the conveyor to cut off.
The two sides of the material box are equipped with side extrusion oil cylinders. If the large-scale waste materials, such as scrapped cars, cannot pass the cutting edge of the gantry shear, they can be squeezed and reduced by the side extrusion oil cylinder, and then sent to the cutting edge through the conveyor to cut off.
Details Images
The rising height of the press mounting spindle can be adjusted within the range of any stroke by timer or position senso，The shear cylinder is connected by ball joint, which improves the stability and service life of the cylinder, increases the front plate guide device, and improves the stress condition of the whole machine。
Main Application
Gantry shearing machine is a kind of equipment suitable for heavy scrap cutting processing, used for thin steel material, steel bar, steel plate, nickel plate, steel plate, round steel, steel pipe, scrap copper, scrap iron, light metal structural parts,stainless steel, metal pressing block, automobile body, aluminum alloy, copper, iron filings, steel wire, metal pressing block and other scrap metal cold cutting short, processing into qualified charge.
Our Advantages
1. Gantry shearing machine adopts hydraulic transmission, compared with mechanical transmission shearing machine, with small volume, light weight, small inertia, low noise, smooth action, easy to operate, flexible, large shear section, scissors mouth adjustment and other advantages, safe operation and use, easy to achieve overload protection.
2. Gantry shearing machine has manual, automatic, remote control function, convenient and simple operation control, scissors mouth in the working process of any position to start cutting and stop, and can be cut according to the size of the material, arbitrary control of the size of the cutting mouth, in order to obtain economic benefits.
3 gantry shear designed fast type, without increasing the motor power and oil pump displacement condition, in (about 4001600 tons) shear speed to maintain fast, shear large material will automatically convert speed. The original shear force is restored and the working efficiency is nearly doubled.
4. Gantry shear machine with fast device. Without increasing the motor power and oil pump displacement, a fast loop is designed to increase the cutting speed from 8 times per minute to 12 times per minute (refers to The Times when the scissors open), and improve the efficiency of nearly double. This function is unique in the national peer.
2. Gantry shearing machine has manual, automatic, remote control function, convenient and simple operation control, scissors mouth in the working process of any position to start cutting and stop, and can be cut according to the size of the material, arbitrary control of the size of the cutting mouth, in order to obtain economic benefits.
3 gantry shear designed fast type, without increasing the motor power and oil pump displacement condition, in (about 4001600 tons) shear speed to maintain fast, shear large material will automatically convert speed. The original shear force is restored and the working efficiency is nearly doubled.
4. Gantry shear machine with fast device. Without increasing the motor power and oil pump displacement, a fast loop is designed to increase the cutting speed from 8 times per minute to 12 times per minute (refers to The Times when the scissors open), and improve the efficiency of nearly double. This function is unique in the national peer.
PRODUCT SPECIFICATIONS
Model | Shear force(tons) | Processing capacity(t/h) | Length of knife edge(mm) | Shear frequency(次/分/sub) | Power(kw) |
LMJ-315 | 315 | 3-5 | 1200 | 2-4 | 22*2 |
LMJ-400 | 400 | 4-7 | 1400 | 2-4 | 37*2 |
LMJ-500 | 500 | 5-8 | 1500 | 2-4 | 45*2 |
LMJ-630 | 630 | 8-10 | 1600 | 2-4 | 45*3 |
LMJ-800 | 800 | 12-15 | 1800 | 2-4 | 55*3 |
LMJ-1000 | 1000 | 15-20 | 2000 | 2-4 | 55*4 |
LMJ-1250 | 1250 | 20-30 | 2000 | 2-4 | 55*4 |
We can customize the product on your request, please send inquiry to contact us | Pressingforce(tons) | Bladelength(mm) | Shearmouthheight(mm) | Shearfrequency(times/PM) | ||||||
Company Profile
Henan Aite Environmental Protection TechnologyCo.Ltd.is a high-tech enterprise committed to the R &D, manufacturing and sales of mechanical equipment in the environmental protection and recycling industry.
we mainly focuses on design and manufacturing automatic waste segregation machine garbage sorter construction waste sorting equipment. include trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, waste shredder machine, manual sorting tables, waste baling machine, chain plate feeder, belt conveyor.etc. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.
FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
